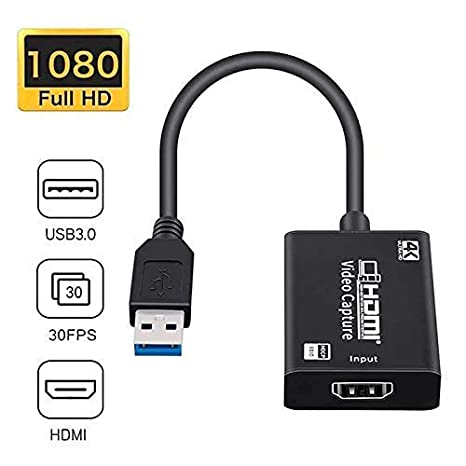

4K Video Capture Card, HDMI to USB 3.0 Game Capture Card Cam Link Card Video Conference or Streaming | Record via DSLR, Camcorder | Works with Mac/Linux/Windows and OBS Nintendo Switch
4K Video Capture Card, HDMI to USB 3.0 Game Capture Card Cam Link Card Video Conference or Streaming | Record via DSLR, Camcorder | Works with Mac/Linux/Windows and OBS Nintendo Switch
This USB 3.0 video capture card can capture both HDMI video and HDMI audio at the same time, sending audio and video signals to computers and smartphones for preview and storage. Technical Specifications :✔HDMI resolution: Max input 4K 60Hz
✔Video output resolution: Max output 1920×1080 at 30Hz
✔Video output format: YUV420/JPEG
✔Support video format: 8/10/12bit Deep color
✔Support audio format: L-PCM
✔Support AWG26 HDMI standard cable: Input up to 10 meters
✔Support most acquisition software: VLC / OBS / Amcap, etc.
✔Support Windows / Android / macOS
✔Dimension (L x W x H): 2.55 x 0.78 x 0.39 in Connection Operation:
1: Connect the UHD signal source and the HDMI input port of the USB acquisition card with one HDMI line
2: Plug the USB male of the USB acquisition card into the USB port of the computer
3: Collection operation steps (OBS)
Open the software
Add a new source
Select "video capture device"
Set the screen size
Select "studio mode" (double window)
Click "start recording"
Packaging Includes：1x Video Capture Card 1x User Manual Importance
Note: Computer hardware configuration requirements: ①CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above ②Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above ③Run memory: 4G RAM
Brand
Cable Connector
HDMI Resolution
Max input can be 3840×2160@30Hz
Video Output Resolution
Max output can be 1920×1080@60Hz
Compatible Devices
Windows / Android / macOS
Max Working Current
0.4 A/5V DC
Hardware Interface
USB Type-C, USB 3.0, USB 2.0
*SPECIFICATIONS ARE SUBJECT TO CHANGE. ONLY APPROX VALUES.

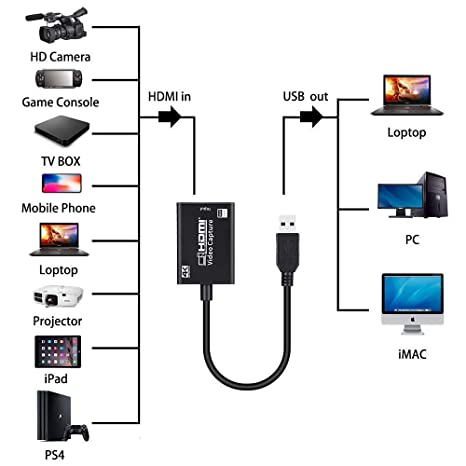

【4K Video Capture Recording】Video capture card is up to 4K/ 30Hz HD input and 1080P/ 60Hz maximum output resolution, based on a USB 3.0 high-speed transfer port, providing 1080p 30FPS high-quality recording and Real-time streaming. Audio video capture card can easily connect your PS4, DSLR, camcorder, or action camera to your PC or Mac.
【Wide and High Compatibility】This USB game capture card is compatible with Windows 7/8/10, Mac OS X 10.9+, Linux, Android, Laptop, 3DS, Xbox One, Camera, Webcam, DSLR, Nintendo Switch, TV BOX, HDTV, Pot player/ VLC, OBS Studio, etc. Easy to operate, real-time preview, record video directly to hard disk with no delay. Easy to stream to Facebook/ YouTube/ Twitch.
【Real-time Preview】Video capture is a familiar and popular way to share content in conference rooms and online meetings. Connect presentations. No software is required, just connect to your laptop or tablet via capture card and cable and start sharing. Also, it makes live streaming, sharing, and recording easy and fast. Widely used in HD capture, teaching recording, medical imaging, live game streaming, Facebook portal TV recording, etc.

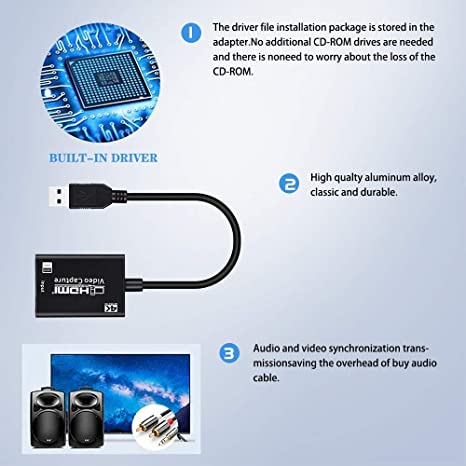

【Portable & Plug & Play】This USB capture card requires no driver installation, just plug and play, easy-to-use and install on your computer. Small size, easy to carry, flexible operation, outdoor, and indoor live broadcast becomes very simple.
【Package Contents & Notes】1 x HD video capture card, 1 x English user manual. The capture card allows real-time feedback. Shoot and produce with your favorite tools. Please note that you need to restart the OBS Studio software after the audio setup is completed, otherwise it will result in no sound output
