PIGTAIL SM SX LC 10 MTR BLUE OVG

0 customer reviews Sold: 0

₹180.00

Out of stock

SKU: CC001693 Categories: Tag: Brand:

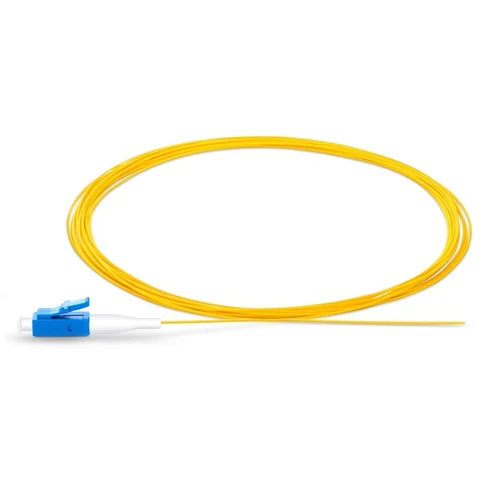

CC Pigtail Single Mode Simplex LC is a bend-insensitive fibre optic cable exhibiting less attenuation when bent or twisted, making fibre optic PIGTAIL cable installation and maintenance more efficient. A pigtail is a single, short, tight-buffered fibre optic cable with a factory-installed connector on one end and unterminated fibre on the other. Among many applications, patch cord is widely used in data centres, enterprise networks, telecommunication rooms, and any other location where fibre patch cables are required.
1) Connector  A  LC UPC
2) Connector  B  Unterminated
3) Fiber Grade  G.652.D
4) Fiber Mode  (9/125 μm)
5) Wavelength  (1310/1550 nm)
6) Insertion Loss  (≤0.3 dB)
7) Interchangeability  (≤0.2 dB)
8) Vibration  (≤0.2 dB)
9) Durability  500 Times
10) Fiber Count  Simplex
11) Cable Diameter  0.9mm
12) Cable Jacket  LSZH
13) Insertion Loss  (≤0.3 dB)
14) Return Loss  (≥50 dB)
15) Interchangeability  (≤0.2 dB)
16)Operating Temperature   (-40°C~75°C)
17) Storage Temperature  (-45°C~85°C)
18) Brand  Cable Connector
19) Cable Type  Fiber Optic, Ethernet
20) Colour  Yellow
*SUBJECT TO CHANGE. ONLY APPROXIMATE VALUES.
  • Good exchange ability and good durability
  • Lower Insertion Loss
  • High Return Loss
  • Excellent Repeatability
  • Environmentally Stable
  • CATV, metro test equipment
  • Telecommunication networks
  • Local area networks (LAN)
  • Wide area networks (WAN)
  • Premise installations
  • Data processing networks
  • Video and military active device termination
  • Fiber to the Indoor (FTTX) Test
  • Systems Integration for Long Haul, Metro, and Access Network.
