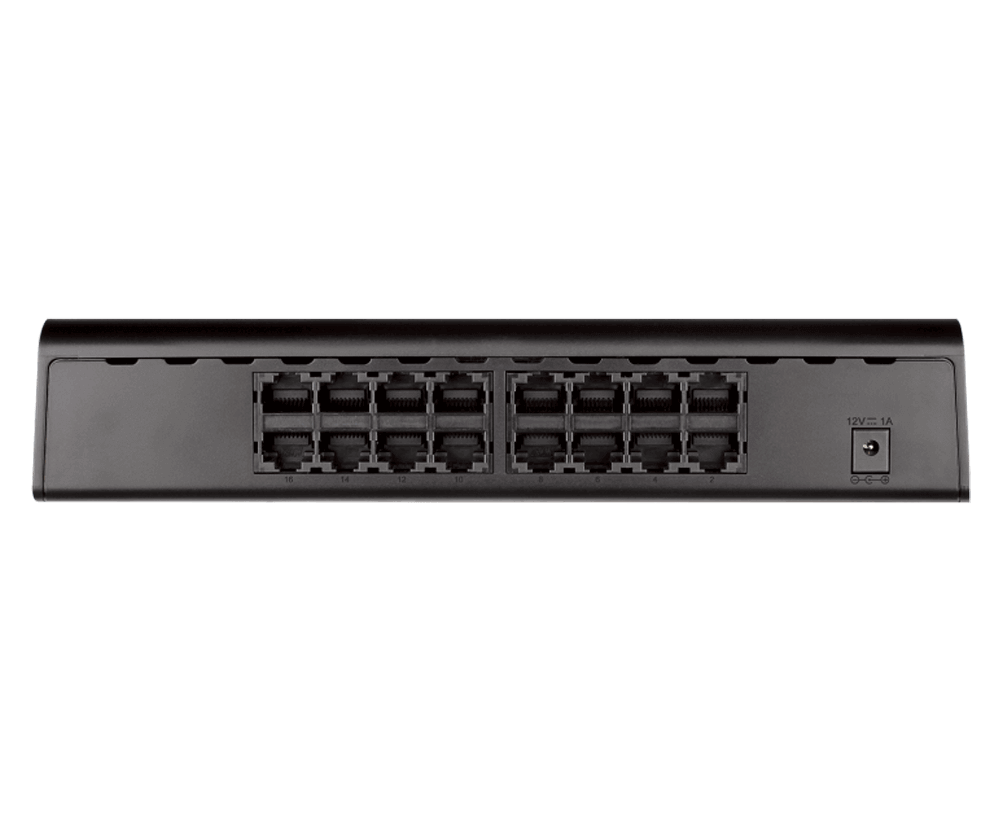

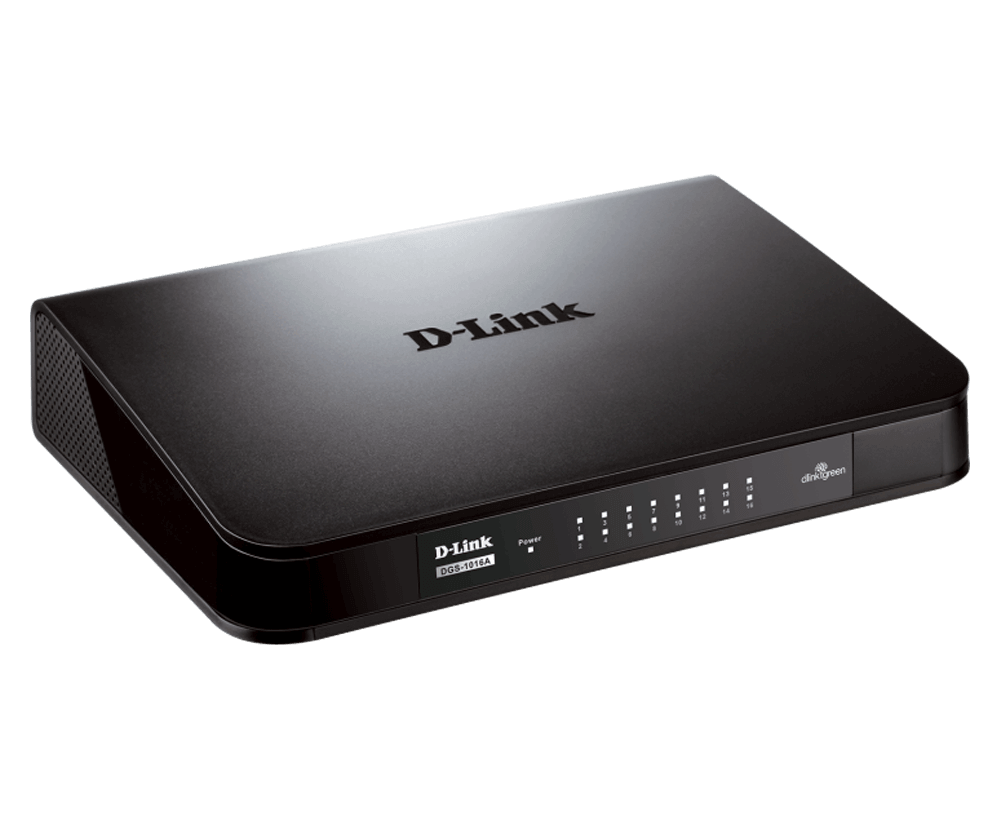

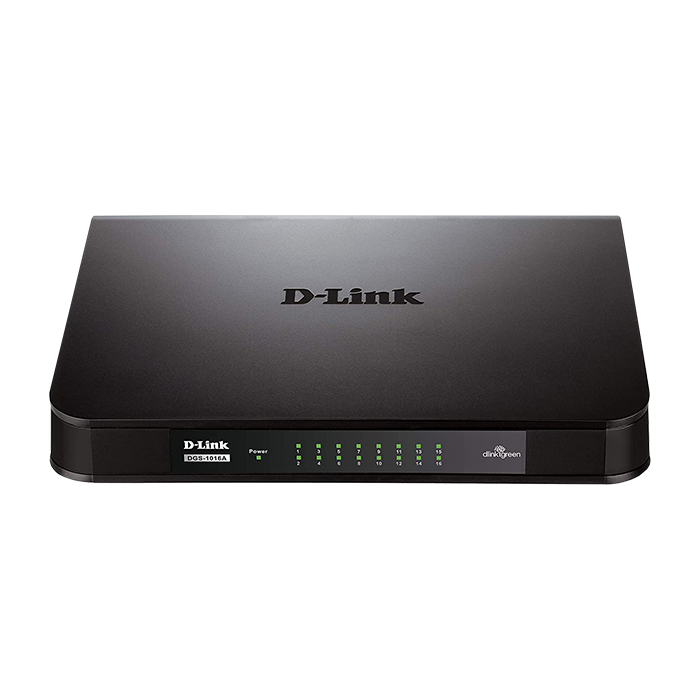

D-LINK 16 PORT GIGA - DGS-1016A Port Gigabit Switch brings the speed of Gigabit Ethernet to each and every port for a high-speed network. If your network has a mix of legacy and modern computing capabilities, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. The DGS-1016A series has a Gigabit SOHO/SMB switch built into the elegant plastic shell. The use of a compact desktop style reduces heat levels and allows for a fanless design, making the switches both quiet and cost-effective. DGS-1016A Unmanaged Gigabit Switch series is small, lightweight, and wall-mountable.
Item model number
DGS-1016A
Switching Capacity
32Gbps
Max. Packet Forwarding Rate
23.8Mpps
Store & Forwarding Forwarding
Yes
Dimension
231 × 158 × 46 mm
Operation Temperature
0 ~ 40 °C
Storage Temperature
- 10 ~ 70 °C
Operation Humidity
5% ~ 90% RH
Storage Humidity
5% ~ 90% RH
Maximum Power Consumption
9.00W
MTBF
527,308 hours
Power Input
AC：100 ~ 240 V
1000Base-T Interface
16
Colour
Black
MAC Address Table Size
8192
Jumbo Frame
9,216 Bytes
*SPECIFICATIONS ARE TO SUBJECT TO CHANGE. ONLY APPROX VALUE.
Auto-negotiates port speed to 10 Mbps, 100 Mbps, or 1000 Mbps
Uses 802.3az Energy Efficient Ethernet
IEEE 802.3x Flow Control
16 Gigabit Ethernet ports for fast network speeds
Fanless design for silent operation
Auto MDI/MDI-X crossover for all ports
Full/half-duplex for Ethernet/Fast Ethernet speeds
Supports 9,216 Bytes Jumbo Frames
RoHS-compliant
Hassle-free plug and play installation
Power Saving By Link Status
Power Saving By Cable Length
