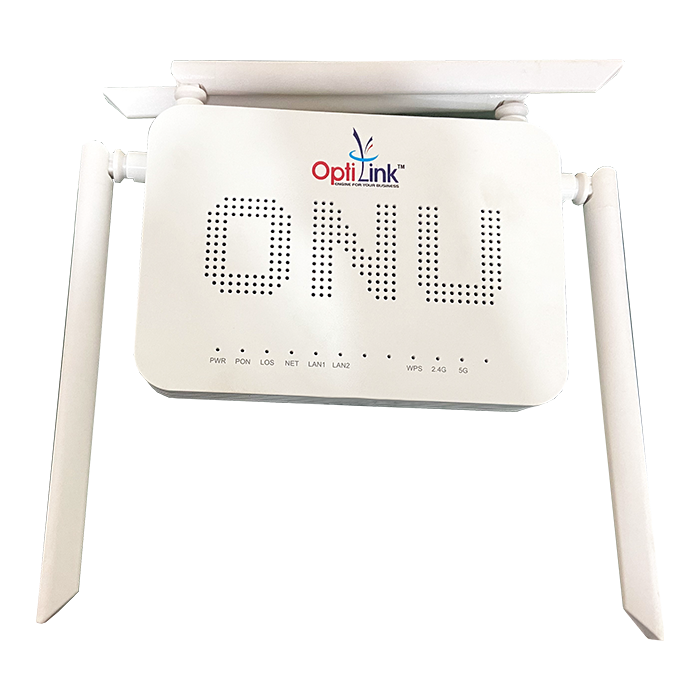

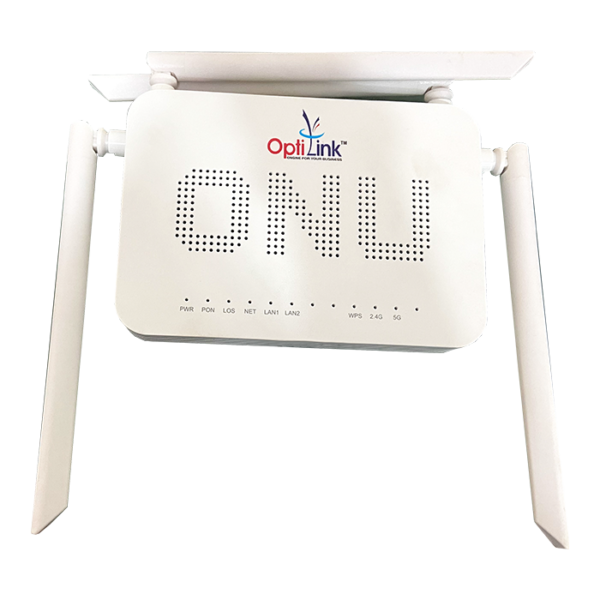

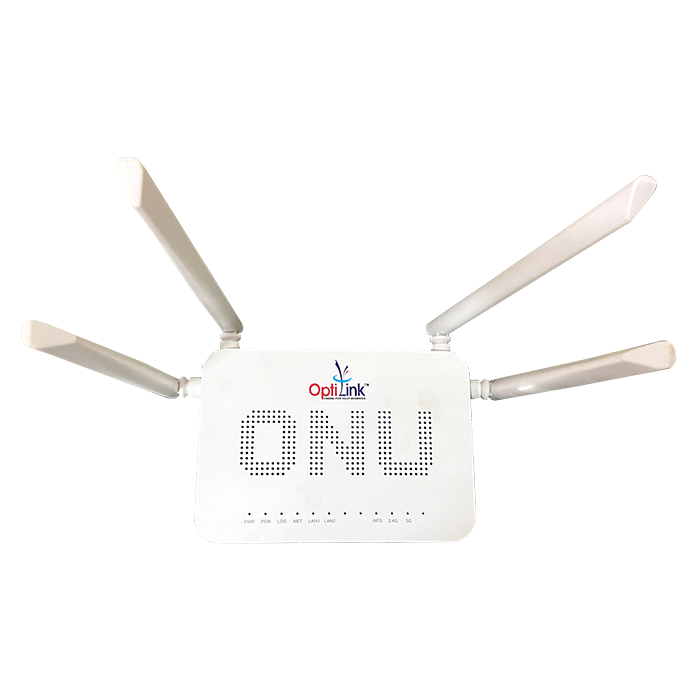

XONT 71110AC-G OL (NEW)

0 customer reviews Sold: 0

₹1.00

Out of stock

SKU: CC001857 Category: Tag: Brand:
Optilink XONT 71110AC 2GE+1POT Wi-Fi GPON/EPON HGU terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators. These boxes are based on the mature Chipset (Realtek) technology, which has a high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac Wi-Fi, Layer 2/3, and high-quality VoIP as well. Control and manage HGU devices through OLT. With guaranteed QoS for different services, they are highly reliable and easy to maintain.  Support all technical regulations such as IEEE802.3ah, ITU-T G.984.x, and technical requirements of GPON Equipment.
●       PON Interface 1 G/EPON Port (EPON PX20+ and GPON Class B+) Receiving Sensitivity: ≤-28dBm Transmitting Optical Power: 0~+4dBm Transmission Distance: 20KM
●       Wavelength Tx 1310nm, Rx 1490nm
●       Optical Interface SC/UPC Connector
●       LAN Interface 2 x 10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half Duplex RJ45 Connector
●       POTS Interface (Options) 1 x RJ11 Connectors Support: G.711A/G.711U/G.723/G.729 Codec Support: T.30/T.38/G.711 Fax mode, DTMF Relay
●       Wi-Fi Interface Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support MIMO, 4T4R, 5dBi external antenna, rate up to 1.167Gbps Support: Multiple SSID TX Power: 11n--22dBm/11ac--24dBm
●       LED 9, for Status of POWER, LOS, PON, WAN, LAN1, LAN2, 2.4G, 5G, PHONE (Option)
●       Operating Condition Temperature: 0??+50? Humidity: 10%?90%? non-condensing?
●       Storing Condition Temperature: -30??+60? Humidity: 10%?90%? non-condensing?
●       Power Adapter DC 12V/1.5A or DC 12V/1.0A
●       Power Supply ≤10W
●       Dimension 178mm×120mm×30m (L×W×H)
●       Net Weight 0.32Kg
  *SPECIFICATIONS ARE SUBJECT TO CHANGE. ONLY APPROX VALUES.
  • G/EPON 1GE ONT Support Mode: GPON and EPON
  • Can be applied to a wide temperature environment.
  • Has a powerful firewall function.
  • Video surveillance and other requirements and design of GPON/EPON Gigabit Ethernet products.
  • The device is registered to the PON system.
  • It complies with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
  • Industrial Networking
  • Optical Fiber Networking
  • Traffic Control/Control Rooms
  • Shopping Mall
  • Residential Quarters
  • FTTO (Office)
  • FTTD (Desk)
  • FTTH (Home)
  • Broadband
  • Video Surveillance
