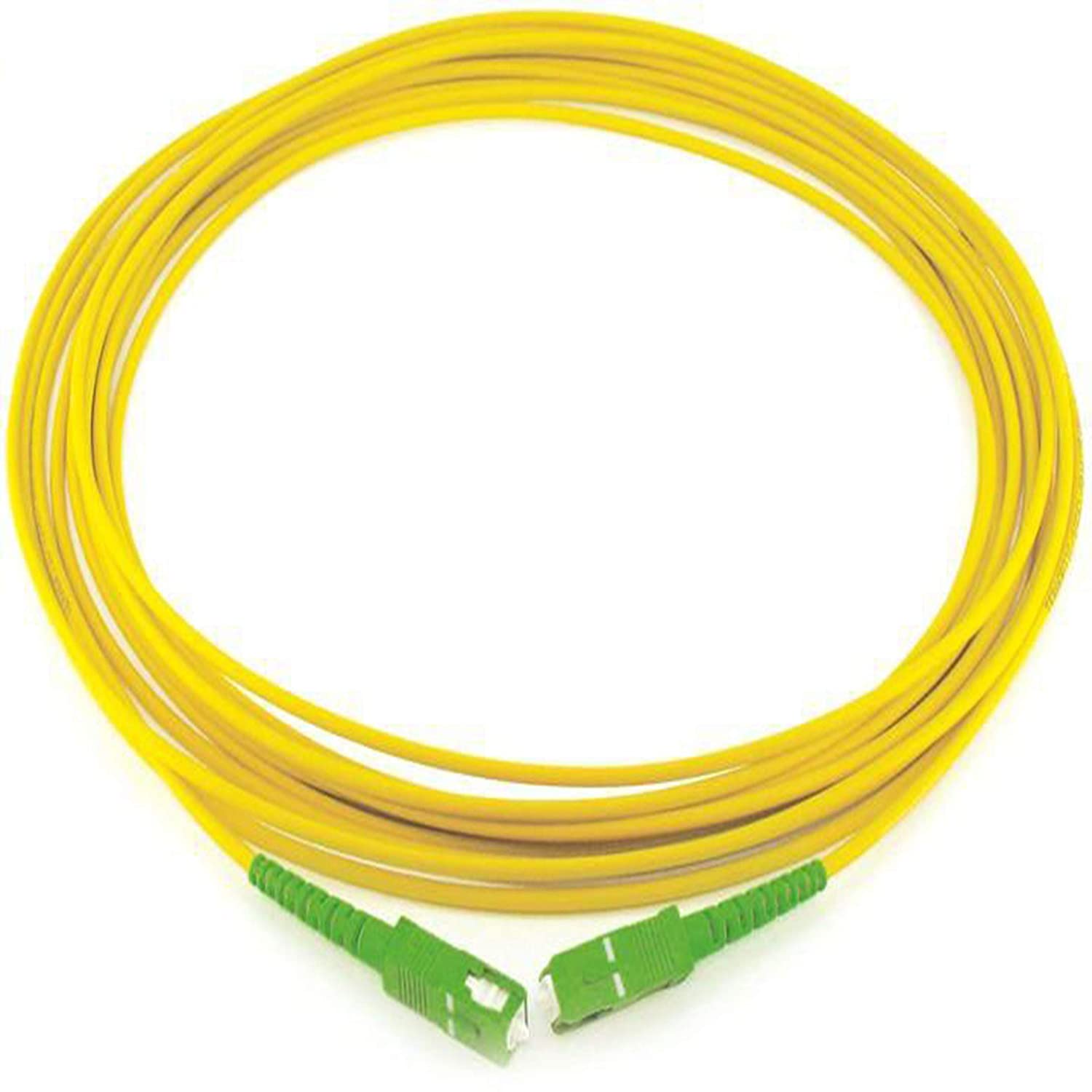

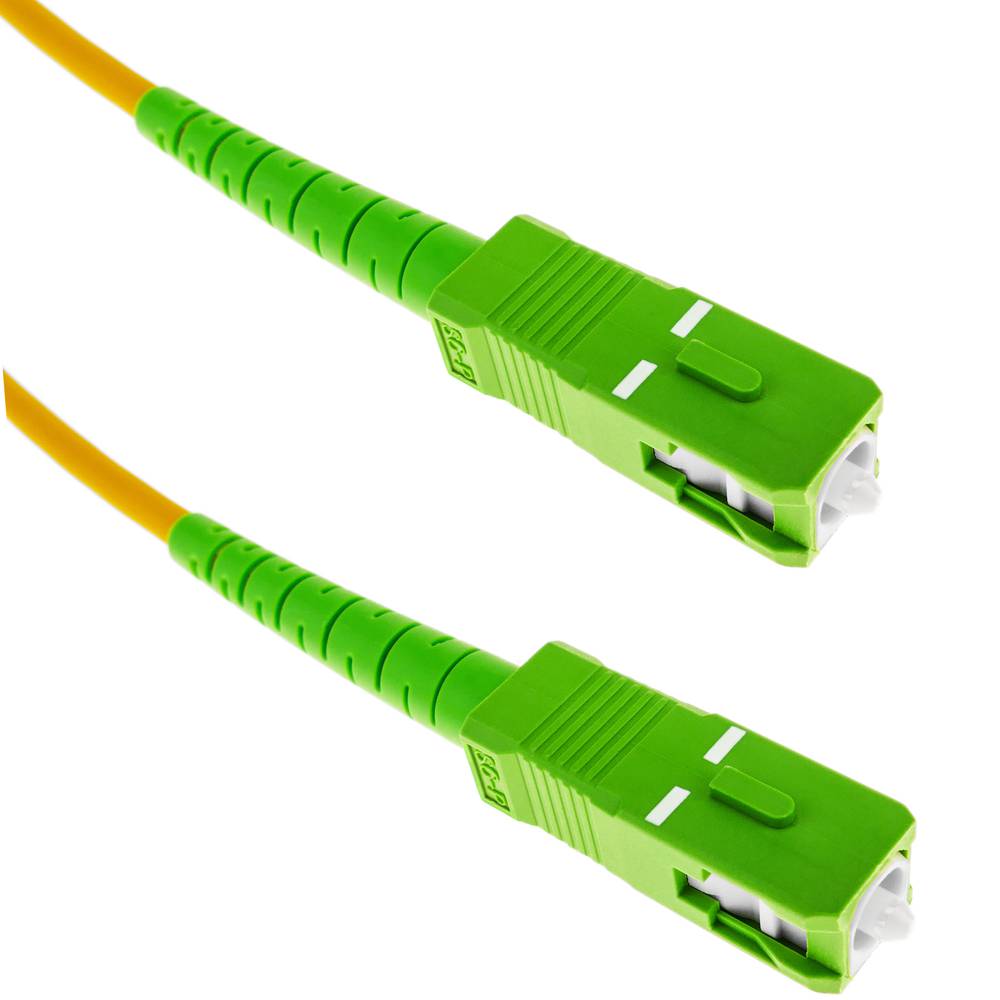

P-CORD SM SX SC/SC 5 MTR GREEN/GREEN OL
₹90.00
Out of stock
Single mode simplex SC/SC Optilink patch cord (5 MTR) green exhibit less attenuation when bent or twisted, making fibre optic cable installation and maintenance easier. Signal transmission between electronic appliances is made possible by using Optilink patch cords single mode simplex SC/SC green that maintain speed coordination. It supports a data transmission range of up to 10km and 40km at 1310nm and 1550nm respectively. Data centers, enterprise networks, telecom rooms, server farms, cloud storage networks, and other locations where fiber patch cables are required are among the many uses for patch cords.
| 1) Connector Type | SC APC to SC APC |
| 2) Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| 3) Wavelength | (1310/1550nm) |
| 4) Insertion Loss | (≤0.3 dB) |
| 5) Return Loss | (≥50 dB) |
| 6) Min. Bend Radius (Fiber Core) | (10mm) |
| 7) Min. Bend Radius (Fiber Cable) | (10D/5D) (Dynamic/Static) |
| 8) Attenuation at 1310 nm | (0.36 dB/km) |
| 9) Attenuation at 1550 nm | (0.22 dB/km) |
| 10) Fiber Count | Simplex |
| 11) Cable Diameter | (2.0mm) |
| 12) Cable Jacket | LSZH |
| 13) Polarity | A (Tx) to B (Rx) |
| 14) Operating Temperature | (-20°C ~70°C) |
| 15) Storage Temperature | (-40°C~80°C) |
| 16) Brand | Optilink |
| 17) Cable Type | Fibre Optic, Ethernet |
| 18) Connector Colour | (SC green / SC green) |
| 19) Cable Colour | Yellow |
- Excellent mechanical endurance.
- Highly credible and stable.
- Excellent repeatability and exchangeability.
- High-density spaces.
- Bend-intensive fiber optic cable.
- Tele-communication
- Fast Ethernet & Data Communication
- Optical Access & Network Equipment
- CATV Communication
- LAN & WAN
- FTTH Solutions
- Data Centres
- Enterprise Networks
- Telecom Room
- Server Farms
- Cloud Storage Networks
